DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating

Jiangsu Xingrui Tools CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

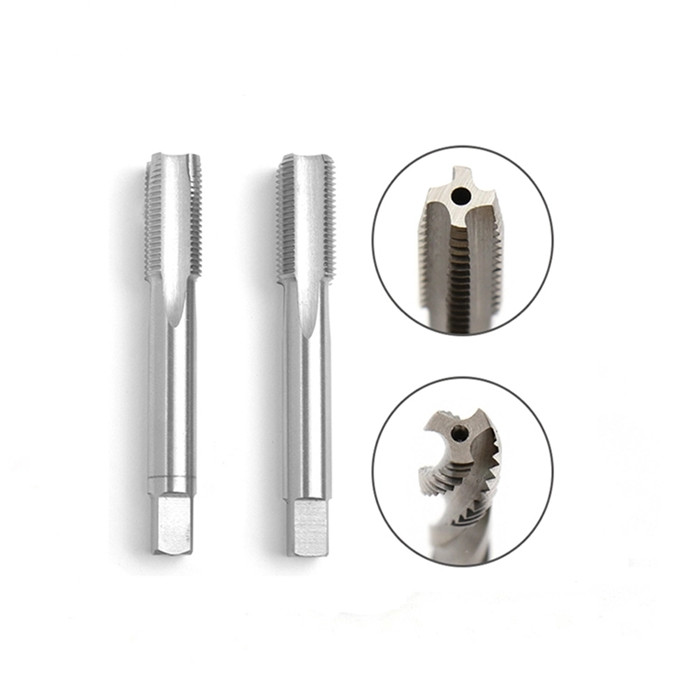

DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating

Brand Name : STARRY

Model Number : 1/8inch to 1inch

Certification : ISO9000

Place of Origin : CHINA

MOQ : 100 sets

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 15000pcs per day

Delivery Time : 35days

Packaging Details : plastic box

Material : HSS-M2;HSS-M35

Type : tap

Surface : Fully Ground

Standard : DIN2181

Precision : H1 H2 H3 H4

Application : Manual Tapping , Thread Tapping

Flute : straight flute

Contact Now

DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating

1. Complete hole drilling, tapping, deburring and countersinking in one operation with power drill saves labor and time.
2. Self-centering point, do not need assistant center drilling or center punching.

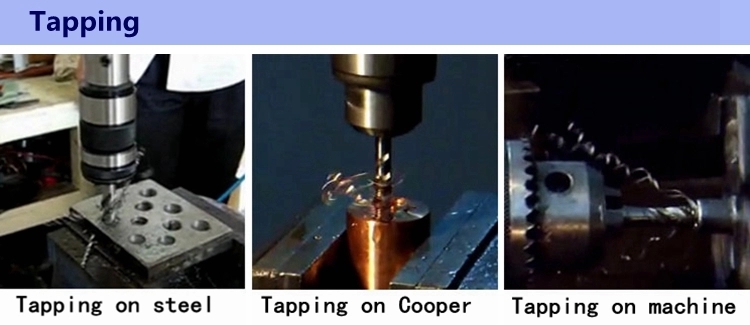

3. Taps produce internal threads in previously formed holes and can be used in machines (such as drill presses) or with

hand tools.
4. Modified bottoming chamfer has additional length to reduce chip load, add tool life, and permit higher tapping speeds.
5. High-speed steel tools are good for most general purpose applications, offering a combination of hardness and

toughness for wear resistance.
6. Made from HSS with titanium coated, high hardness and rust resistance, durable and long service life.
7. Suitable for drilling, tapping, cutting on soft metal, aluminum plate, iron, etc.

DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating
DIN2181,for metric-ISO thread DIN13,Tolerance 6H=is02

B.S.W is short for British Standard Whitworth Coarse Thread.B.S.F is short for British Standard Fine Thread.Thread Angle is 55°,Fully Ground

M2 HSS
M35 HSS -E,Coatings,avaliable for specified requirements
2 of set:Taper and Plug.
For through holes and blind holes.

Product Name
DIN2181 Hand Taps
Material
Hss 4241,Hss 4341,Hss 6542,Hss M35
Color
Bright,Black,Titanium coating.
Standard
DIN GB ISO JIS BSW UNF UNC ANSI
LGrade
Low.Middle,High
Thread
Inside thread tapping
Used
metal thread tapping

size

Thread DIN 13 Tolerance ISO2/6H.
High speed steel,ground teeth.
DIN 2181 serial form taps; rougher tap(with 1 ring) cuts 3/4 area of thread and finisher tap cuts full form.
Size: M3-M30.

SIZE OVERALL LENGTH THREAD LENGTH
1/8-40 40 12
5/32-32 45 14
3/16-24 50 18
1/4-20 56 22
5/16-18 63 25
1/2-12 80 32
7/16-14 75 30
9/16-12 80 32
5/8-11 90 36
3/4-10 105 40
7/8-9 110 45
1-8 110 50


DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating

Packing and Deliver:

DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating

DIN 2181 Hand HSS Machine Taps M2 Material With Straight Flute Titanium Coating
